A "virtual" slot that will eventually be mapped to a machine-level slot. More...

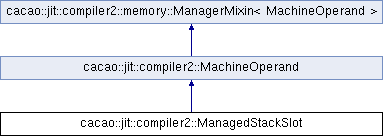

Inheritance diagram for cacao::jit::compiler2::ManagedStackSlot:

Public Member Functions
virtual ManagedStackSlot *	to_ManagedStackSlot ()
	Conversion method. More...

virtual const char *	get_name () const

u4	get_index () const

void	set_index (unsigned index)
	Set the index of the slot. More...

StackSlotManager *	get_parent () const

virtual OStream &	print (OStream &OS) const
	Print a human-readable representation of this slot. More...

Public Member Functions inherited from cacao::jit::compiler2::MachineOperand
std::size_t	get_id () const

	MachineOperand (OperandID op_id, Type::TypeID type)

OperandID	get_OperandID () const

Type::TypeID	get_type () const

virtual	~MachineOperand ()

virtual MachineOperand *	to_MachineOperand ()

virtual VoidOperand *	to_VoidOperand ()

virtual Register *	to_Register ()

virtual StackSlot *	to_StackSlot ()

virtual Immediate *	to_Immediate ()

virtual Address *	to_Address ()

bool	is_MachineOperand () const

bool	is_VoidOperand () const

bool	is_Register () const

bool	is_StackSlot () const

bool	is_ManagedStackSlot () const

bool	is_Immediate () const

bool	is_Address () const

bool	is_stackslot () const

bool	aquivalence_less (const MachineOperand &MO) const

bool	aquivalent (const MachineOperand &MO) const

virtual bool	is_virtual () const
	True if operand is virtual and must be assigned during register allocation. More...

virtual bool	needs_allocation () const
	Return true if operand is processed during register allocation. More...

bool	has_embedded_operands ()

std::size_t	op_size () const

EmbeddedMachineOperand &	operator[] (std::size_t i)

const EmbeddedMachineOperand &	get (std::size_t i) const

EmbeddedMachineOperand &	get (std::size_t i)

operand_iterator	begin ()

operand_iterator	end ()

operand_iterator	find (MachineOperand *op)

EmbeddedMachineOperand &	front ()

EmbeddedMachineOperand &	back ()

const_operand_iterator	begin () const

const_operand_iterator	end () const

Private Member Functions
	ManagedStackSlot (StackSlotManager *SSM, Type::TypeID type)
	Construct a ManagedStackSlot. More...

Private Attributes
StackSlotManager *	parent
	The StackSlotManager that created (and owns) this slot. More...

u4	index
	Represents the slot's position in the virtual stack frame. More...

Friends
class	StackSlotManager

Additional Inherited Members
Public Types inherited from cacao::jit::compiler2::MachineOperand
enum	OperandID { MachineOperandID, RegisterID, StackSlotID, ManagedStackSlotID, ImmediateID, AddressID, VoidOperandID }

typedef const void *	IdentifyTy

typedef std::size_t	IdentifyOffsetTy

typedef std::size_t	IdentifySizeTy

typedef alloc::vector < EmbeddedMachineOperand > ::type	embedded_operand_list

typedef embedded_operand_list::iterator	operand_iterator

typedef embedded_operand_list::const_iterator	const_operand_iterator

Static Public Member Functions inherited from cacao::jit::compiler2::memory::ManagerMixin< MachineOperand >
static void *	operator new (std::size_t size) throw (std::bad_alloc)
	normal new More...

static void *	operator new (std::size_t size, void *ptr) throw ()
	placement new More...

static void *	operator new (std::size_t size, const std::nothrow_t &nt) throw ()
	nothrow new More...

static void	operator delete (void *pMemory) throw ()
	normal delete More...

static void	operator delete (void pMemory, void ptr) throw ()
	placement delete More...

static void	operator delete (void *pMemory, const std::nothrow_t &) throw ()
	nothrow delete More...

static void *	operator new[] (std::size_t size) throw (std::bad_alloc)
	normal new[] More...

static void *	operator new[] (std::size_t size, void *ptr) throw ()
	placement new[] More...

static void *	operator new[] (std::size_t size, const std::nothrow_t &nt) throw ()
	nothrow new[] More...

static void	operator delete[] (void *pMemory) throw ()
	normal delete[] More...

static void	operator delete[] (void pMemory, void ptr) throw ()
	placement delete[] More...

static void	operator delete[] (void *pMemory, const std::nothrow_t &) throw ()
	nothrow delete[] More...

Protected Member Functions inherited from cacao::jit::compiler2::MachineOperand
virtual IdentifyTy	id_base () const

virtual IdentifyOffsetTy	id_offset () const

virtual IdentifySizeTy	id_size () const

Protected Attributes inherited from cacao::jit::compiler2::MachineOperand
embedded_operand_list	embedded_operands
	TODO describe. More...

Detailed Description

A "virtual" slot that will eventually be mapped to a machine-level slot.

A ManagedStackSlot may be used to store spill-registers (as needed during register allocation) or to store arguments of method invocations. ManagedStackSlots may only be constructed via a corresponding StackSlotManager and will eventually be mapped to actual machine-level slots during code generation.

Note that there is no one-to-one mapping between actual machine-level slots and ManagedStackSlots. Multiple ManagedStackSlots might map to the same machine-level slot which is the case for those slots that are used for storing arguments for method invocations.

Definition at line 292 of file MachineOperand.hpp.

Constructor & Destructor Documentation

cacao::jit::compiler2::ManagedStackSlot::ManagedStackSlot	(	StackSlotManager *	SSM,
		Type::TypeID	type
	)

inlineprivate

Construct a ManagedStackSlot.

Parameters

SSM	The StackSlotManager that created (and owns) this slot.
type	The type of the slot.

Definition at line 315 of file MachineOperand.hpp.

Member Function Documentation

u4 cacao::jit::compiler2::ManagedStackSlot::get_index ( ) const

inline

Returns: The index representing this slot's position in the virtual stack frame.

Definition at line 336 of file MachineOperand.hpp.

virtual const char* cacao::jit::compiler2::ManagedStackSlot::get_name ( ) const

inlinevirtual

Returns: A human-readable name of this slot.

Implements cacao::jit::compiler2::MachineOperand.

Definition at line 328 of file MachineOperand.hpp.

StackSlotManager* cacao::jit::compiler2::ManagedStackSlot::get_parent ( ) const

inline

Returns: The StackSlotManager that created (and owns) this slot.

Definition at line 348 of file MachineOperand.hpp.

virtual OStream& cacao::jit::compiler2::ManagedStackSlot::print ( OStream & OS ) const

inlinevirtual

Print a human-readable representation of this slot.

Parameters

OS	The stream to print to.

Returns: The corresponding stream.

Reimplemented from cacao::jit::compiler2::MachineOperand.

Definition at line 357 of file MachineOperand.hpp.

void cacao::jit::compiler2::ManagedStackSlot::set_index ( unsigned index )

inline

Set the index of the slot.

Parameters

index The corresponding index.

Definition at line 343 of file MachineOperand.hpp.

virtual ManagedStackSlot* cacao::jit::compiler2::ManagedStackSlot::to_ManagedStackSlot ( )

inlinevirtual

Conversion method.

Reimplemented from cacao::jit::compiler2::MachineOperand.

Definition at line 323 of file MachineOperand.hpp.

Friends And Related Function Documentation

friend class StackSlotManager

friend

Definition at line 361 of file MachineOperand.hpp.

Field Documentation

u4 cacao::jit::compiler2::ManagedStackSlot::index

private

Represents the slot's position in the virtual stack frame.

Note that multiple ManagedStackSlots might use the same index, since they may be mapped to the same position in the stack frame (which is the case for slots that are used for storing arguments for method invocations).

Definition at line 307 of file MachineOperand.hpp.

StackSlotManager* cacao::jit::compiler2::ManagedStackSlot::parent

private

The StackSlotManager that created (and owns) this slot.

Definition at line 298 of file MachineOperand.hpp.

The documentation for this class was generated from the following file:

/home/bbc/buildbot/slave/doxygen/source/cacao/src/vm/jit/compiler2/MachineOperand.hpp
